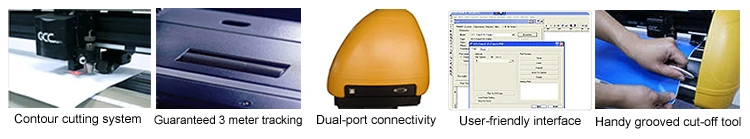

AAS Coutour cutting system (Available on EX-24LX) | LX model features a standard Automatic-Aligning System (AAS) to guarantee precise contour cutting by detecting the registration marks on digitally produced images. Functions include:
|
| Guarantee 3 meter tracking | It comes with stable drums that can guarantee 3 meter tracking to ensure quality outputs and save you materials and costs. |
| Dual-port connectivity | It supports dual-port connectivity with USB and serial ports. Dual-port connectivity provides sign makers with great flexibility for data transmission. |
| User-friendly Interface | The control panel of Expert Series is very user-friendly; it comes with the special VLCD software, providing a simple and intuitive workflow for users of all levels. |
| Handy grooved cut-off tool | This handy and innovative design allows you to cut off a finished job in a straight line easily reducing the possibility of wasting usable material. |
Expert Series | EXPERT-24 | EXPERT-24LX | |
Max. Cutting Width | 600 mm (23.6 in.) | ||
Max. Media Width | 719 mm (28.3 in.) | ||
Material Thickness | 0.8 mm | ||
Cutting Force | 350 g | ||
Max. Cutting Speed | 600 mm/sec (at 45 degree direction) | ||
Mechanical Resolution | 0.009 mm (0.00035 in.) | ||
Software Resolution | 0.025 mm (0.00098 in.) | ||
Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | ||
Repeatability | ±0.1 | ||
Type of Command | HP-GL, HP-GL/2 | ||
Mechanical Resolution | 0.006 mm | ||
Software Resolution | 0.025 mm | ||
Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | ||
Repeatability | ±0.1 mm | ||
Tracking | 3M | ||
Memory Buffer | USB 2.0 (Full Speed) & RS-232 | ||
Type of Command | HPGL, HPGL/2 | ||
Configurable Origin | Yes | ||
Control Panel | 2.5 mm | ||
Repeat | Yes | ||
Copy | Yes | ||
Pouncing | Yes | ||
Control Panel | 6 LEDs / 10 Keys | ||
Diameter of Blade | 2.5 mm | ||
Dimension (HxWxD) mm | 233*255*880 | ||
Stand | Optional | ||
Automatic-Aligning System | N/A | Completely Automatic Contour Cutting System for print to cut solution | |
Operation Environment | Temp | 15° C~30° C / 60°F~86° F | |
Humidity | 25% ~ 75% | ||
Packaging:
Cardboard carton
| Quantity | Shipping Method | Shipping Time | Remarks | |||||||||||
| ≤20kg | EMS | 5~25 Working Days | Door to Door Import duty unpaid | |||||||||||
| TNT or other Express | 3-7 Working Days | Door to Door Import duty unpaid | ||||||||||||
| 20~45kg | TNT or other Express | 3-7 Working Days | Door to Door Import duty unpaid | |||||||||||
| ≥ 45kg | TNT or other Express | 4-6 Working Days | Door to Door Import duty unpaid | |||||||||||
| Air shipment | 3-10 Working Days | Door to Airport Import duty, local charge unpaid | ||||||||||||
| ≥ 1 cbm | Ocean shipment | 7~40 Working days | Door to port Import duty, local charge unpaid | |||||||||||
Now we have our own brand, Fantasy and Attractive, which standards for high quality transfer machine and materials but with lower price.
It represents top quality products which is made in Taiwan.
